Hydraulic Pilot Valves for Joystick & Foot Pedal
Precision joystick and foot pedal pilot control systems designed for smooth, reliable remote operation in mobile and industrial hydraulic applications.
Product Overview
Pilot control devices are primarily used to control proportional directional valves and hydraulic pumps. In terms of control methods, they can be operated manually (including foot-operated) or electronically. In addition to conventional pilot control devices that use hydraulic fluid as the working medium, we also offer pilot control devices that use gas as the working medium.
Working Principle
Pilot control device joystick and foot pedal work according to the principle of direct-acting pressure reducing valves. In rest position, the joystick lever or kit pedal is held in neutral by return spring; inlet port P is closed and service ports (1 – 2 – 3 -4) are connected to tank port T. By selecting control lever, plunger compresses return spring and reaction spring through cam mechanism; It shifts spool and opens connection holes between inlet port P and service ports consequently. This causes a pressure increase on service ports that is proportional to the control lever stroke and the reaction spring.
General Specification
- Maximum input pressure: 100 bar
- Maximum back pressure on tank line: ≤3 bar
- Maximum flow on ports: 15 L/min
- Hydraulic fluid: Mineral oil HL, HM (HLP DIN 51524)
- Fluid temperature range: -20℃ ~ +90℃
- Fluid viscosity range: 10 ~ 380 cst
- Max contamination level: 9 (NAS 1638) – 20/18/15 (ISO 4406:1999)
- Recommended filtration: β10 > 75 (ISO 16889:2008)
- Leakage (single port): 3 cc/min (with 50 bar of pressure)
- Body material: Cast iron
- Surface coating: Zin plated (According to international standards 2000/53/CE RoHS)
- Plunger material: Stainless steel
- Plunger guide material: Brass
Available Control Pressure Curves
Consult the curves to select the ideal pressure output for your machine dynamics. **Contact our engineering team to discuss custom curve options.**
Product Showcase

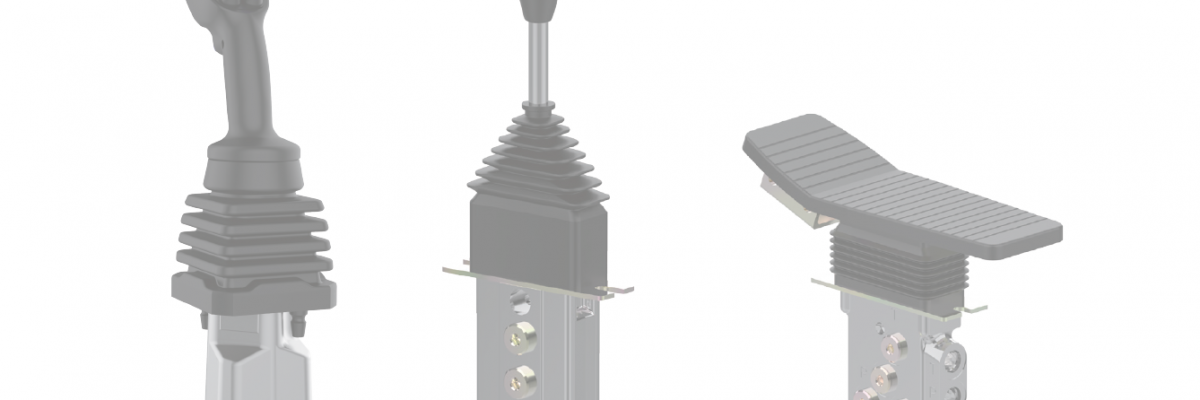

Pilot Control Device For Joystick

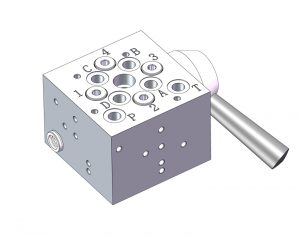

Stackable single axis pilot control lever
Single foot pedal valve
Frequently Asked Questions (FAQ)
Our units are dimensionally designed to be drop-in replacements for standard industrial specifications. However, always consult our dimensional drawings and schematics to confirm fitment and flow compatibility before ordering.
The maximum input pressure is 100 Bar (1450 PSI). The devices are rigorously tested to ensure stable, reliable performance across the full operating temperature range ($-20^\circ \text{C}$ to $+90^\circ \text{C}$).
Yes. We offer several standard pressure curve options. For specialized applications, our engineering team can work with you to tailor a **custom curve** and design specific joystick grips or pedal sizes.
